What Size Awning Do I Need? A Practical Measuring Guide

What size awning do I need? Start with the width of the window or outdoor zone, add suitable side coverage, then choose a projection that shades the area when you use it. Mounting height, orientation, wind exposure and obstacles must be checked.

An awning can look correctly sized on a product page yet provide disappointing shade once the sun moves across the property. In practice, the most common measuring mistake is treating the window, deck or patio dimensions as the finished awning dimensions without allowing for sun angle, mounting limits or the position of furniture below.

This awning size guide explains how to measure a residential or commercial opening, estimate useful coverage and recognise when a professional site measure is the safer choice. The measurements are for planning only; the final dimensions must comply with the selected system’s engineering, fixing and manufacturer requirements.

What Are the Key Awning Sizing Takeaways?

The correct awning size balances useful shade with safe installation. Start from the opening and occupied area, then account for projection, sun direction, mounting height, structure and obstacles. A custom product should be checked against the chosen system before it is manufactured.

• Measure the area that must be shaded, not only the window or wall.
• Record width, projection, mounting height and every nearby obstruction in millimetres.
• Allow side coverage beyond window glass where the product and façade permit it.
• Test where the shadow will fall during the hours the room or outdoor area is used.
• Treat orientation, low-angle sun and wind exposure as sizing factors.
• Confirm the building substrate, power access and approvals before ordering.
• Use a professional measure for custom, motorised, wide or elevated awnings.

What Size Awning Do I Need for a Window, Patio or Deck?

The right awning size matches the area that needs shade, not simply the wall width. A window needs side coverage beyond the glass, while a patio or deck needs enough width and projection to shade the main seating, dining or walking zone.

Begin by defining the job the awning must do. A compact window awning is usually intended to stop direct sun reaching the glass. A folding-arm patio awning must cast shade over people and furniture several metres from the wall. A shopfront awning may also need to preserve signage visibility, door clearance and pedestrian access.

Use this first-pass selector before taking detailed measurements:

Application	Measure first	Main sizing priority	Common risk
Single window	Outer frame and usable wall width	Side coverage and sun angle	Sizing only to the glass
Two adjacent windows	Full combined opening and centre pier	Continuous coverage without blocking features	Creating a bright gap between awnings
Balcony	Usable façade width and boundary clearance	Compact projection and safe headroom	Extending beyond the balcony line
Patio or deck	Main occupied zone	Width plus enough projection to reach furniture	Shading the wall but missing the table
Sliding or bi-fold doors	Full opening, door swing and mounting space	Door clearance and unobstructed movement	Arms or front bar conflicting with doors
Shopfront	Frontage, entrance and footpath clearance	Shade, access and façade requirements	Ignoring landlord or council conditions

For custom window awnings Melbourne properties use, the supplier should translate these site measurements into a finished product size that suits the selected frame, fabric, controls and fixing method. Curtains Direct’s awnings are made to measure for windows and larger outdoor spaces.

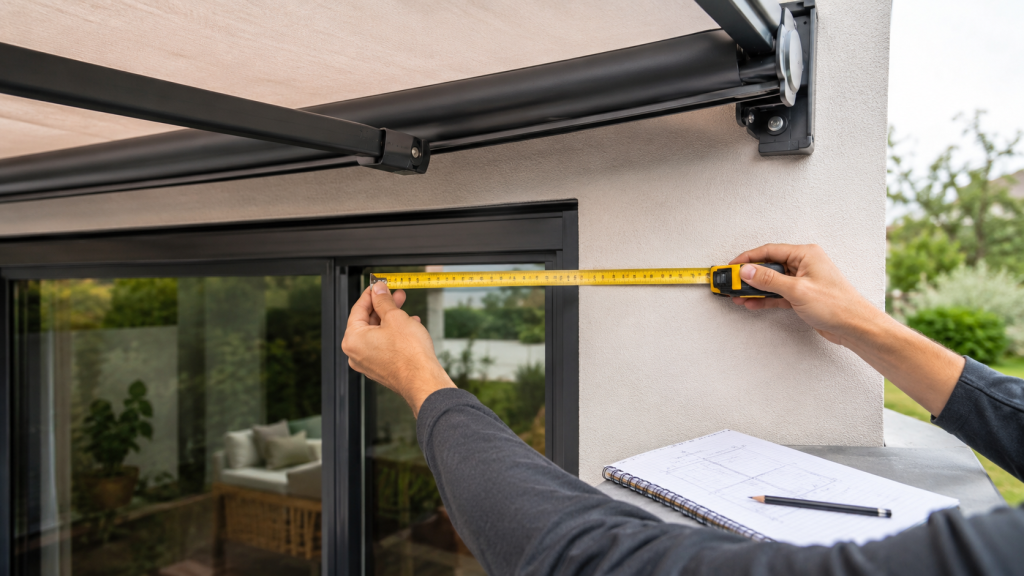

How Do You Measure for an Awning?

Measure the usable mounting area, the opening below it and every nearby obstruction before choosing a product. Record all dimensions in millimetres, measure at least twice and photograph the façade so the supplier can assess clearances, fixing points and access before manufacture.

Seven-step awning measuring process

1. Define the exact area that must be shaded: mark the window, seating, dining or work zone you want covered so the awning is designed around actual use rather than the full wall by default.
2. Measure the opening width in three places: take measurements across the top, middle and bottom because masonry, trims and older frames may not be perfectly square; record the largest and smallest results.
3. Measure the usable mounting width: identify how much solid, unobstructed wall or fascia is available above and beside the opening, without assuming decorative cladding is suitable for structural fixing.
4. Measure the required projection on the ground: start at the wall and measure to the outer edge of the area that needs shade, including the occupied position of chairs rather than only the table edge.
5. Record mounting height and clearance: measure from finished ground level to the proposed fixing point, then check door heads, outward-opening windows, lights and the headroom needed below the front bar.
6. Map every obstruction and service: note gutters, downpipes, eaves, pipes, cables, vents, cameras, signage, balconies and trees because each can reduce available width, projection or installation access.
7. Repeat the measurements and take photographs: verify every dimension with a second reading and photograph the full elevation plus close-ups so a professional can identify details that a measurement list may miss.

A steel tape or quality laser measure is helpful, but do not lean from a ladder or measure an elevated façade without appropriate access equipment. For upper-storey, commercial or difficult installations, leave the site measure to a trained professional.

Measurement summary sheet

Measurement	What to record	How many times?	Why it matters
Opening width	Top, middle and bottom	3	Reveals an out-of-square opening
Usable mounting width	Clear structural zone	2	Confirms room for brackets and cassette
Required projection	Wall to target shade line	2	Determines useful depth of shade
Mounting height	Ground to fixing point	2	Affects pitch, front-bar height and clearance
Obstacle clearance	Distance to each obstruction	Once each, then verify	Prevents clashes during operation
Photos	Wide elevation and close-ups	One complete set	Gives context to the dimensions

How Much Wider Should a Window Awning Be?

For a window awning, extend beyond the glazed opening so low-angle sunlight cannot easily enter around the sides. The exact allowance depends on orientation, awning style, frame position and manufacturer limits, so treat the window width as your starting measurement only.

There is no universal side-overlap number that suits every window. A narrow north-facing window beneath a deep eave may need less additional width than a west-facing living-room window exposed to strong afternoon sun. Brick returns, downpipes, neighbouring windows and product bracket locations can also limit the available extension.

Use this practical method:

1. Mark the outer edges of the glass or frame.
2. Identify the direction from which unwanted sun reaches the window.
3. Add potential coverage on both sides within the usable wall area.
4. View the opening from the sun-exposed angle, not only straight in front.
5. Ask the supplier to confirm that the selected system can safely provide that finished width.

For two close windows, one correctly engineered awning may create more even shade than two small units with a bright strip between them. However, the centre pier, façade appearance and fixing locations still need assessment.

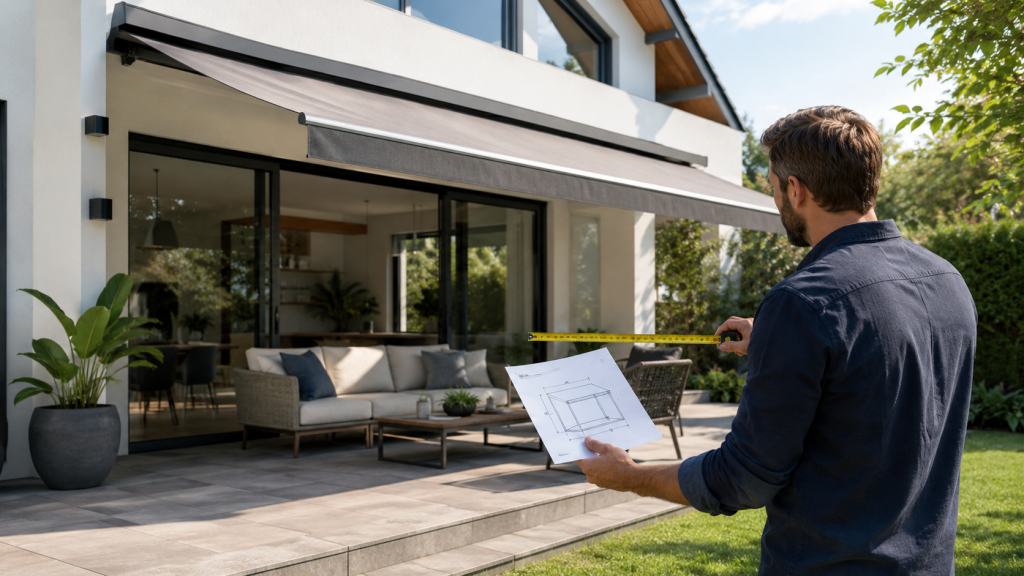

How Far Should an Awning Project be from the Wall?

Projection is the distance the awning extends from the wall. Choose it by mapping where shade must fall, then checking sun direction, mounting height and head clearance. A wide awning with shallow projection may still leave the main seating area exposed.

For a patio, place the dining table and chairs where they are normally used. Measure from the wall to the outer occupied chair position, then consider how the shade line moves through the afternoon. For a window, projection must be sufficient to interrupt direct sunlight before it reaches the glass while maintaining the intended outlook and ventilation.

A simple planning calculation is:

Approximate overhead shade area = awning width × projection

A 4-metre-wide awning with a 2.5-metre projection has an overhead footprint of about 10 square metres when fully extended. That figure does not guarantee 10 square metres of ground shade because the real shadow changes with the sun angle, mounting height, pitch and time of day.

Before selecting a deep projection, check:

• The maximum projection available for that awning model
• Whether the width-to-projection combination is permitted by the system
• Front-bar height when fully extended
• Boundary, balcony and footpath limits
• Wind exposure and structural fixing requirements
• Whether trees, posts or neighbouring structures block operation

How Does Window Orientation Change Awning Size?

Orientation changes the shape of shade you need. North-facing openings generally respond well to horizontal overhead shading, while east- and west-facing glass receives lower-angle sun and often needs deeper, adjustable or more vertical coverage to control morning and afternoon heat effectively.

According to the Australian Government’s YourHome shading guide, the best shading approach depends on climate and orientation; adjustable shading can admit useful winter sun while blocking stronger summer sun.

Sustainability Victoria also recommends adjustable external devices such as awnings, blinds, louvres and shutters for controlling heat gain through windows.

North-facing windows

North-facing glazing can often use horizontal shading that blocks high summer sun but allows lower winter sun when the system is retracted or appropriately designed. The required projection depends on the window height, mounting position and surrounding eaves.

East-facing windows

Morning sun arrives at a lower angle. A modest overhead projection may not cover the full glass early in the day, so wider side coverage, an adjustable awning or an external vertical shade may work better.

West-facing windows

West-facing rooms often receive low, intense afternoon sun when homes are already warm. Deeper or more vertical adjustable shading can be more effective than simply increasing the width of a shallow overhead awning.

South-facing windows

South-facing glazing usually receives less direct sun in Melbourne, although site conditions, reflected heat and seasonal sun paths still matter. Avoid oversizing an awning where it would unnecessarily reduce daylight without solving a real heat or glare problem.

Where side sun or privacy is the main issue, compare an overhead awning with motorised outdoor blinds. Indoors, roller blinds or blockout roller blinds can add glare and privacy control, but they do not replace correctly designed external shade.

How Do Mounting Height, Pitch and Obstacles Affect Size?

Mounting height, pitch and obstacles can reduce the usable size even when the wall looks large enough. The awning must clear doors, windows, gutters, lights, downpipes and paths while maintaining practical headroom and a suitable slope for the selected system and fabric.

Mounting height

A higher mounting point can improve head clearance, but it may move the shadow farther from the wall and require a different pitch. A lower mounting point may shade the glass more directly yet conflict with a door head, window opening or pedestrian path.

Awning pitch

Pitch is the downward angle from the wall to the awning’s front edge. It influences the shadow line, front-bar height and how water behaves on products approved for light-rain exposure. Pitch ranges and weather limitations are product-specific; do not force a shallow angle simply to preserve headroom.

Building substrate

Brick veneer, solid masonry, concrete, timber framing and lightweight cladding require different fixing strategies. The visible surface alone does not confirm what sits behind it. A large folding-arm awning creates leverage when extended, so bracket positions must be assessed against the actual structure.

Nearby features

Measure around downpipes, eaves, air-conditioning lines, wall lights, security cameras, vents and external power points. Also check the full path of outward-opening windows and doors. Moving an awning sideways to avoid one obstruction may reduce coverage at the opposite edge.

Which Awning Type Suits the Available Space?

Fixed, retractable and motorised awnings can cover similar openings, but their mechanisms impose different sizing limits. Fixed systems suit constant shade; folding-arm systems need secure fixing and clear extension space; motorised systems also need suitable power, controls and weather-management features.

Awning type	Best suited to	Size consideration	Trade-off
Fixed window awning	Windows and doorways needing regular shade	Must fit permanently without darkening the opening unnecessarily	No seasonal retraction
Drop-arm window awning	Adjustable shade over windows	Arm movement and side clearance affect dimensions	Less suitable for covering a full patio
Folding-arm retractable awning	Patios, decks and entertaining areas	Width, projection and structural fixing must work as one system	Must be managed in unsuitable weather
Motorised retractable awning	Large or frequently used outdoor zones	Needs power, control location and service access	Higher initial cost
External vertical blind	Low-angle side sun and privacy	Measures width and drop rather than overhead projection	Does not provide overhead cover

Homeowners planning automated shade can compare motorised blinds, curtains and awnings before deciding which openings need exterior coverage and which need interior light or privacy control.

What Sizes Suit Common Melbourne Applications?

The best size depends on what you want shaded and when the space is used. Instead of copying a standard size, match the awning to the usable zone, test the likely shadow line and confirm the chosen system can be safely fixed.

The following framework is an original planning tool, not a product specification. It shows how to reason from the space to the measurement rather than choosing a unit by width alone.

Illustrative situation	Start by measuring	Coverage test	Likely direction
West-facing bedroom window	Full frame, side wall and sun-entry angle	Does shade cover the glass during late afternoon?	Wider side coverage or adjustable external shade
North-facing living-room window	Window height, eave depth and mounting point	Is summer sun blocked without losing useful winter light?	Horizontal or retractable window awning
Compact apartment balcony	Façade width, boundary and headroom	Does the front bar remain within the balcony envelope?	Compact retractable system, subject to approval
Family deck with six-seat table	Occupied chair footprint and wall width	Are diners shaded when chairs are pulled out?	Folding-arm awning with adequate projection
Café frontage	Shop width, entrance, signage and footpath	Are access and clearance maintained throughout operation?	Custom commercial assessment
Wide glass doors	Full opening, door path and structural zone	Can the awning operate without obstructing doors or lights?	Wide folding-arm or multiple engineered systems

A practical shadow test

On a sunny day, place removable tape or chalk marks around the area you want shaded. Photograph the sun and shadow at the main use times for example, midday, 3 pm and 5 pm. The test will not replace professional design, but it reveals whether width or projection is the real problem.

In our experience, a homeowner often asks for “the biggest awning that fits” when the better solution is a slightly smaller overhead awning paired with side shading for low afternoon sun. Separating the overhead and side-sun problems can produce better comfort without oversizing one product.

When Should You Book a Professional Measure?

Book a professional measure when the awning is custom-made, wide, motorised, installed above doors, fixed to an uncertain substrate or exposed to wind. A site visit can confirm dimensions, structure, power, access, approvals and product limits before manufacturing begins.

Professional measuring is particularly important when:

• The opening is above ground level
• The façade is rendered, clad or difficult to assess
• The awning spans wide doors or several windows
• Projection must cover furniture precisely
• The site is exposed to wind
• The system is motorised or sensor-controlled
• An owners corporation, landlord or council may need to approve the work
• A commercial installation affects signage, exits or pedestrian clearance

If you are still asking what size awning do I need after taking the basic measurements, do not guess at the finished manufacturing size. Provide your measurements and photos, then let the supplier confirm the product dimensions, bracket positions, projection, pitch and operation.

What does professional installation cost?

Awning prices vary substantially with width, projection, fabric, frame, motorisation, access, substrate and electrical work. As an Australian market guide, hipages reported in January 2026 that professional installation commonly costs about $75–$100 per hour, with many residential awnings taking two to four hours; complex access and motorised work can add cost. Treat these figures as indicative only and request a site-specific written quote.

The Building and Plumbing Commission’s permit guidance states that proposed building work requires a building permit unless an exemption applies. Because awning requirements vary with the work, property and planning controls, confirm the position with the installer, relevant building surveyor, owners corporation or council before installation.

Curtains Direct provides free, no-obligation quotes through its Bayswater showroom and online enquiry form. You can book a free measure and quote to have the opening, shade goal and product options assessed before ordering.

Get the Awning Size Confirmed Before You Order

The answer to what size awning I need comes from four connected measurements: useful width, required projection, mounting height and the sun path across the space. Orientation, obstacles, structure and the chosen awning mechanism then determine what can be installed safely.

Measure carefully for planning, but have custom or motorised awnings checked before manufacture. Curtains Direct can help Melbourne homeowners, renovators, landlords and businesses compare window, patio and automated shade options and arrange professional installation.
